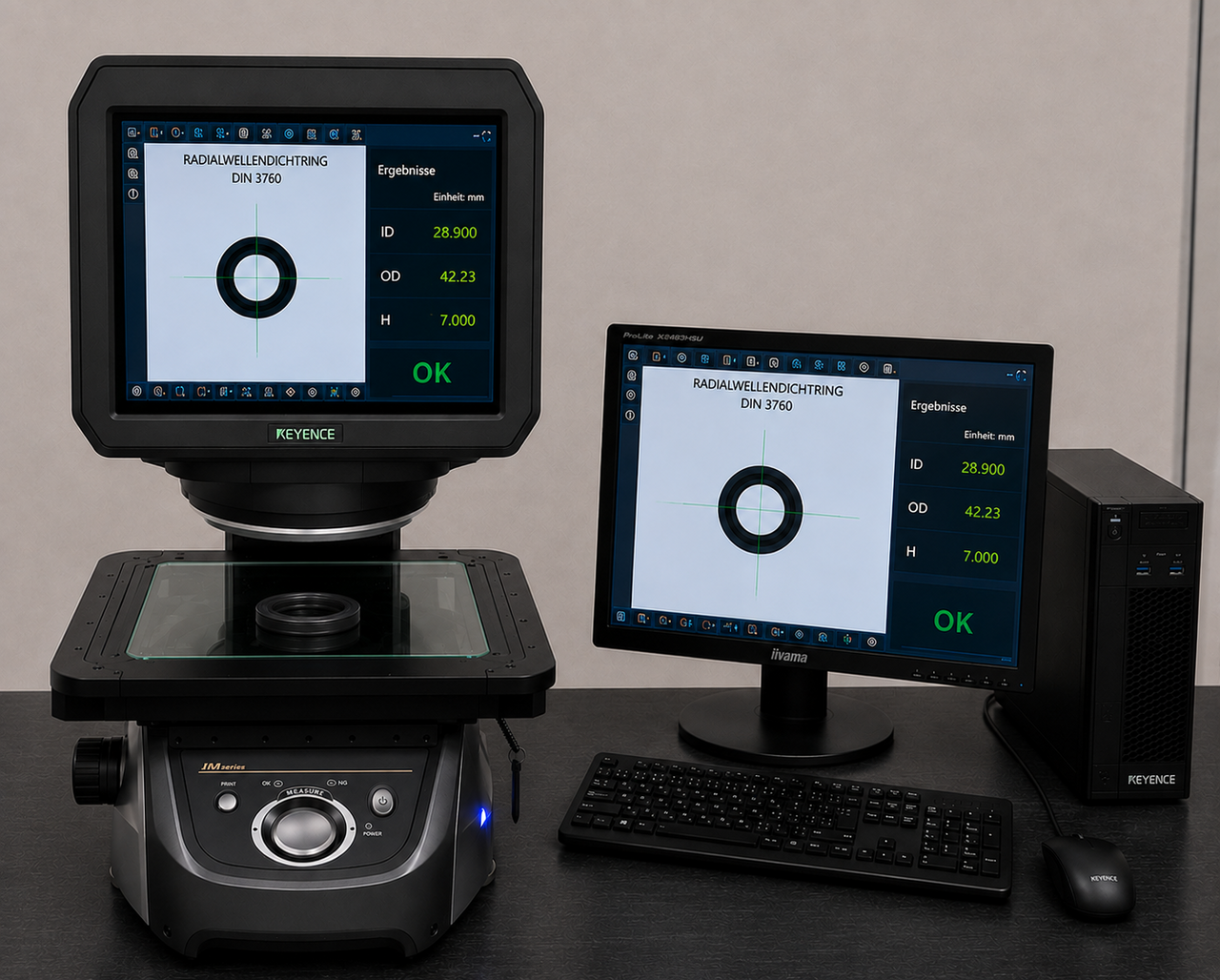

The KEYENCE is an automatic optical image measurement system for the rapid and precise measurement of components.

It combines a high-resolution camera with a double telecentric lens, programmable lighting and a motorised XY/Z measuring stage.

Key features:

• Measuring range up to 200 × 200 mm, precision measurement mode 125 × 125 mm
• Display resolution 0.1 µm
• Repeatability up to ±0.5 µm
• Measurement accuracy in precision mode up to ±2 µm
• 6.6-megapixel monochrome CMOS sensor
• Telecentric transmitted light and programmable ring illumination
• Additionally, integrated light probe for tactile measurements
• Motorised XY stage with 100 × 100 mm travel and 75 mm Z-axis
• Suitable for high-speed batch measurements and automated quality control

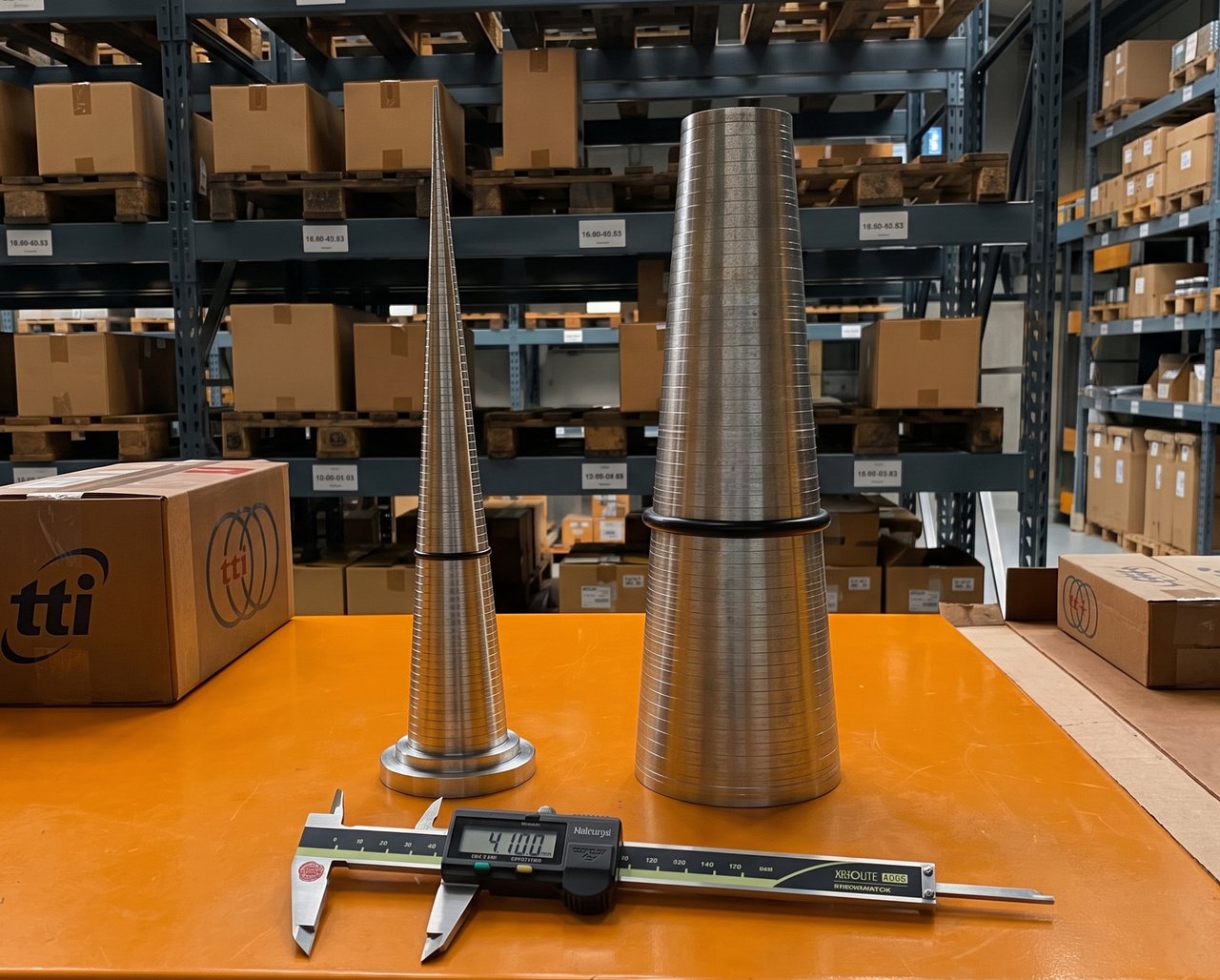

O-ring measuring cone for checking the internal dimensions of O-rings.

The O-ring is pulled over the cylindrical measuring cone to check the internal diameter and dimensional accuracy quickly and consistently.

Key features:

• Inspection of the O-ring’s internal diameter
• Simple and quick to use
• Suitable for incoming goods, intermediate and final inspections
• Enables non-destructive testing when used correctly
